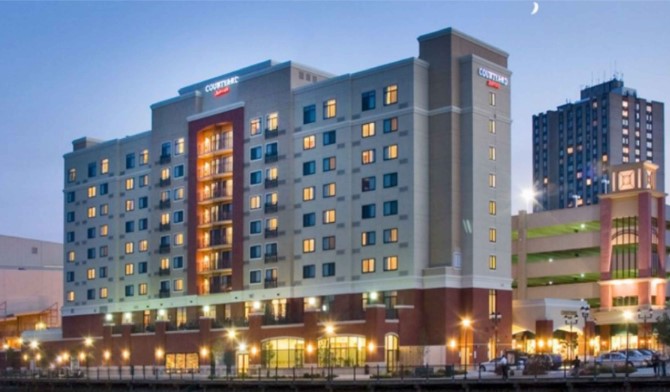

Marriott Courtyard Marriott Courtyard

Location: Gaithersburg, MD


  • Energy Management System
  • Occupancy based setbacks/recovery mode

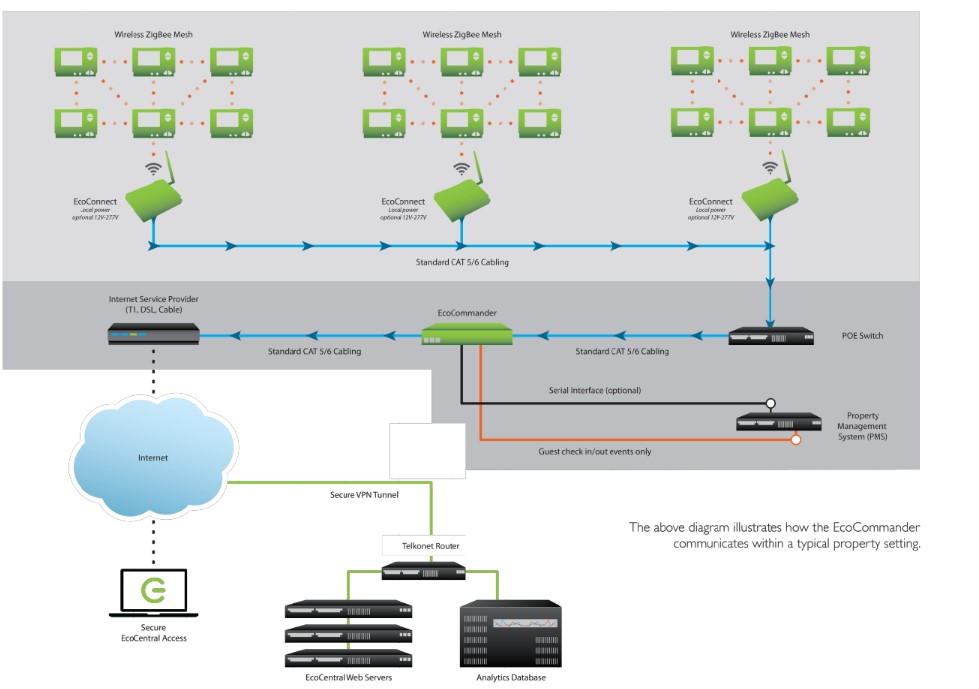

  • Deep mesh RF Zigbee network
  • Installed and programmed Telkonet gateways
  • Installed thermostats in all rooms, conducted heat/cool testing, and completed room commissioning. (EcoInsight devices)
  • HVAC Controls

    • When the room is not rented and is unoccupied the thermostat is in deep temperature set back recovery mode.
    • When the room is rented and unoccupied the thermostat is set to a more comfortable setback but still in energy conservation mode.
    • When the room is occupied the thermostat will bring and maintain the temperature to meet the guest desired setting.
    • When the room is occupied but motion is not detected other processes such as heat signatures and nighttime override settings are implemented.
  • Design notes

    • The smart con system will include in room temperature control via an Ecoinsight thermostat.
    • Occupancy controlled lighting via built-in occupancy sensor on the thermostat.

Smart Technologies! Automation! Room control
